The canvas ​

The canvas is where the map is really read and edited. This page walks through the tools around it: three bars, search, lines and cards — and ends with what the canvas cannot do.

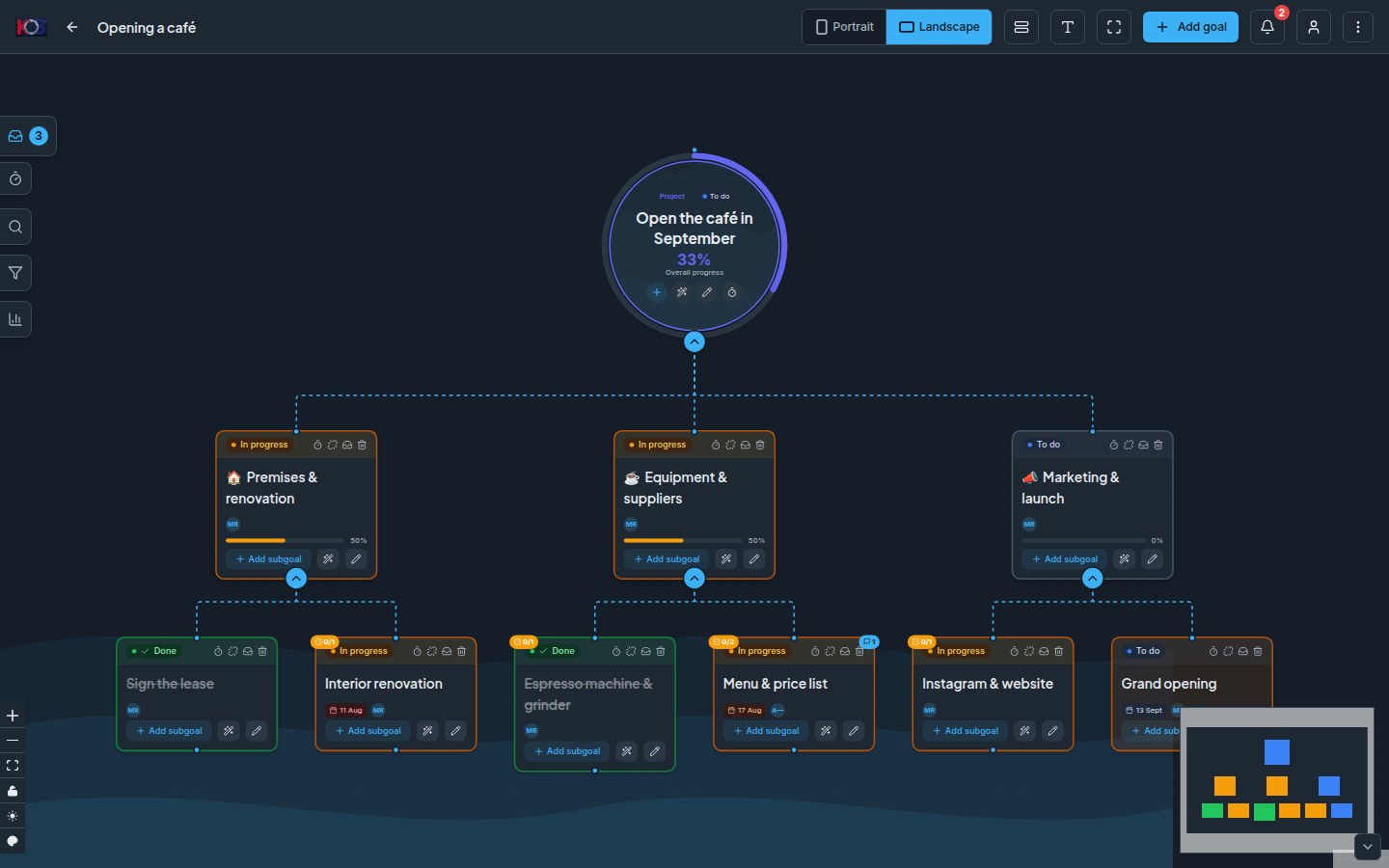

The map canvas — the toolbar on top, the left rail with search and panels, the canvas controls bottom left.

The top bar ​

Below the bar, the project name sits in its own row — a click opens it for editing, Enter confirms. In the bar itself, from the left:

ElementWhat it does
←Back to the home page.
Portrait / LandscapeThe direction the tree grows. Switching only redraws the map.
Arrange ▾ · Sort ▾ · Readability ▾Layout style, order of sub-goals and text size — each has its own page: Arranging, Sorting sub-goals, Readability.
The frame buttonTidy the map by your settings (Arrange and Sort) and show all of it.
+ Add goalA new goal under the apex.
BottlenecksHighlights the steps holding up the others — see Bottlenecks.
ShareThe map sharing dialog — see Team and roles.
Saving stateSaving… / Saved; what happens on a concurrent edit is in Collaboration and conflicts.
⋮ More actionsTasks (of this map), Undo, Share, Assistant, Export PNG / PDF, JSON and JSON (no names), Save as template…, Archive project (on an archived one Restore from archive).
The map bar on an ordinary monitor — the menus are icons; the labels appear from 1850 px wide.
The ⋮ More actions menu — this map's Tasks, Undo, Share, Assistant, exports, template and archiving.

On an ordinary computer (under 1850 px) the menus are just icons, and Undo, Share and the exports live in ⋮. On a phone (up to 640 px) the bar has two rows — the logo, back, add goal, bottlenecks, assistant, bell and ⋮ on top; direction, Arrange, Readability and the frame below.

Undo takes back one of your steps at a time: adding, deleting and moving a goal, arranging, connecting, and also an edit saved from the goal dialog (title, description, assignee, deadline, status). The keyboard shortcut is Ctrl+Z (⌘Z on a Mac). While you are typing in a field or a dialog is open, the shortcut only undoes typing in that field. A status switched by clicking the badge on a goal, comments and attachments are not undone.

The left rail ​

The vertical rail at the left edge, from the top:

The left rail — search, stash, time tracking, My tasks, Rules, Dashboard, Tasks of this project.
  1. Search goals… (the magnifier) — opens the field; a match gets an amber frame, the other nodes fade. A second click closes the field; while a query is set, the magnifier stays tinted.
  2. Stash (the inbox with a count) — your ideas across maps; an idea is dragged onto the canvas. See The idea stash.
  3. Time tracking (the timer) — the entries panel. See Time tracking.
  4. Show only my tasks (the filter) — other people's nodes fade.
  5. Rules (the bolt, with a count) — the map's automation rules. See Rules.
  6. Progress dashboard — see Dashboard and changes.
  7. Tasks of this project (with a count) — the Tasks page narrowed to this map, with a Project tasks: … bar and a Back to map link on top.
  8. Report a bug or idea (the bug, lower down) — see Bug reports.

Canvas controls bottom left ​

The canvas controls — zoom in, zoom out, the whole map, the lock, light/dark mode and the appearance.
  • + / − and the frame (Zoom out to the whole map).
  • The lock — Nodes unlocked — tap to lock: locking turns off dragging and connecting nodes (handy on a phone when tapping moves things by accident). The default is unlocked — on a phone too, nodes can be dragged with a finger and connected.
  • Light / dark mode (sun / moon).
  • Appearance (skin) — the same as the user menu → Appearance.
  • The minimap bottom right keeps you oriented on large maps; the button in its corner hides it (Hide minimap) and the choice is remembered. There is no minimap on a phone or in My map.

What the lines tell you without clicking ​

The connector between goals changes color according to the state of the goal at its end:

The line leads to a goal that isIt looks like this
donegreen and still — the work is finished
overduered and running faster
anything elsethe skin's neutral color

A done goal with a passed deadline is still done — green wins. The colors are part of the skin (the done and late tokens). With the Bottlenecks button on, the lines to real bottlenecks are additionally drawn red, thick and dashed. If you have animations turned off in your system, you get the colors without motion.

Lines can also be edited: a click selects a line (it gets thicker) and Delete removes it; a new connection is dragged from the handle under a node to another node. The app keeps the map a tree: This goal already hangs somewhere (detach it from its current parent first), That would create a loop, A goal cannot connect to itself — and for an older import with an error it offers This map has a broken connection → Repair (detaches the extra connection; can be undone).

The goal card and the small things ​

  • The circle under a node collapses or expands the branch — handy in a meeting.
  • Detach from parent (an icon on the card) — the node moves elsewhere without deleting.
  • The timer on the card starts time tracking on this goal.
  • The card's corners carry badges for attachments, comments and tasks; the deadline and the assignee sit under the title.
  • Sticky notes — free text on the canvas outside the goal tree. They come from an import or from the assistant; they can be deleted from the card (Delete note). A note is not created from the bar.
  • When you finish the last goal, the map celebrates — All done 🎉 — and offers to move the project to the archive.

Selecting several goals and bulk edit ​

Drag with Shift held to select several goals; a bar appears at the bottom — 1 goal selected / N goals selected — with Edit selected and Delete selection.

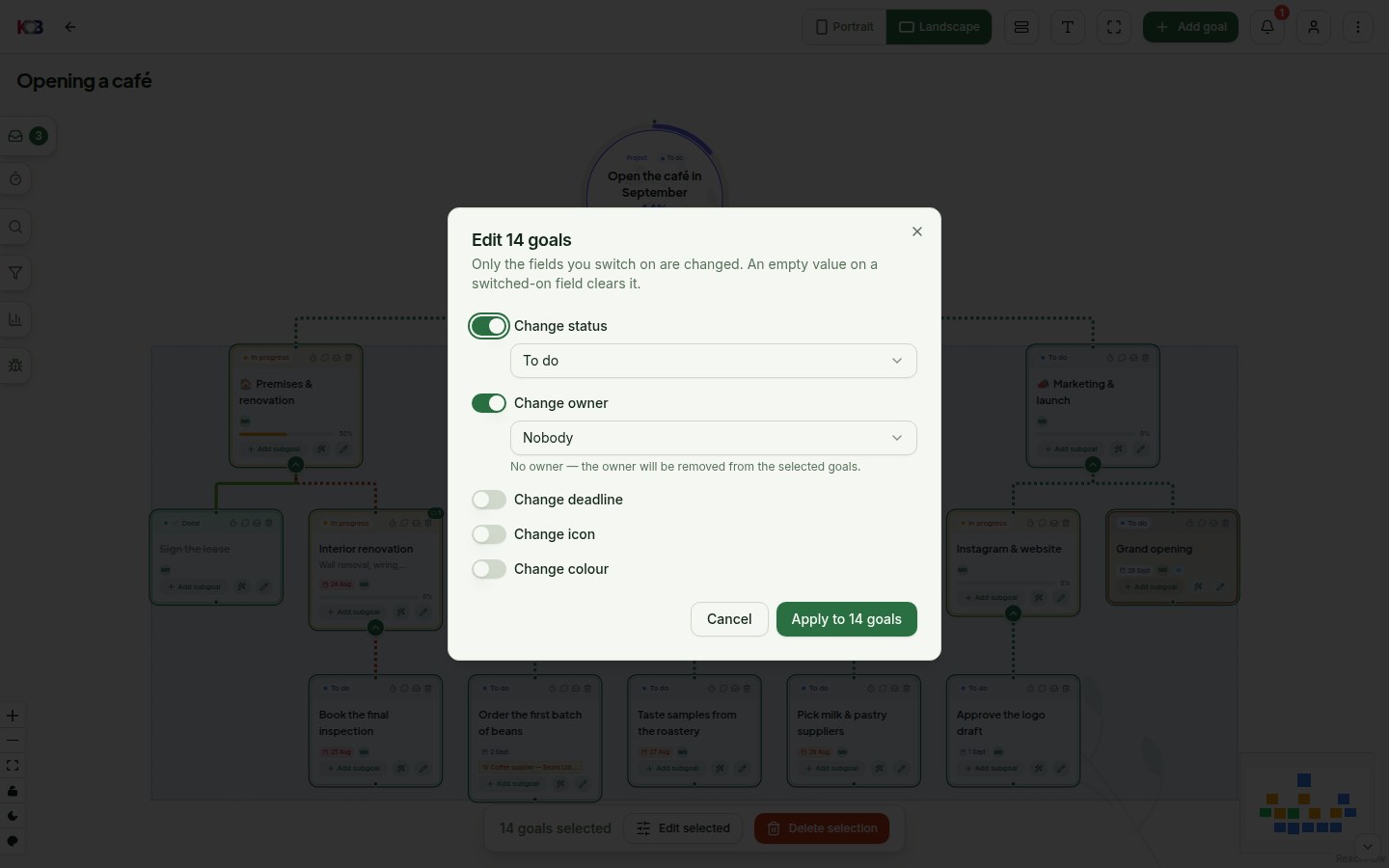

Bulk edit — only the fields you switch on are changed.

The Edit N goals window has the Change status, Change owner, Change deadline, Change icon and Change colour switches — Only the fields you switch on are changed. An empty value on a switched-on field clears it. That's how you remove an owner (No owner) or a deadline (No date) in bulk. A deadline set by someone else is skipped and the window says so in advance (Someone else set the deadline on 2 of 14 goals. Those stay unchanged.). After confirming you get N goals changed — Use Undo to revert.

Limits

  • On a read-only map and in the public view you only look at the canvas; Arrange, Sort and bulk edit are missing.
  • A sticky note cannot be created from the bar — the button is gone; notes come from an import or from the assistant.
  • On a phone there is no minimap and no Shift multi-select; the bar has two rows.
  • On an ordinary monitor (under 1850 px) Undo, Share and the exports are tucked into ⋮.
